Product Quality
Get the most
out of your investment.
Price is what you incur
initially & cost is what you will
spend over the life of the machine.
Stefab industrial machines
come with high-performance
technology to ensure the lowest
cost of operations.
High performance means
greater efficiency & premium
quality results.
Share this Product
Download
Technical
Brochure for this
product here.
  • Feeding SideAutomatic Bed Sheet Folder.
  • Collection SideAutomatic Bed Sheet Folder.
/

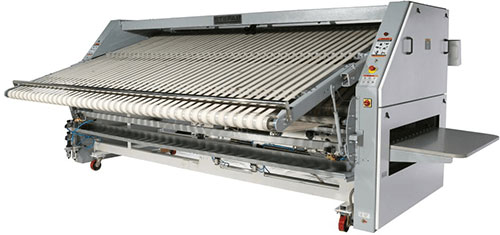

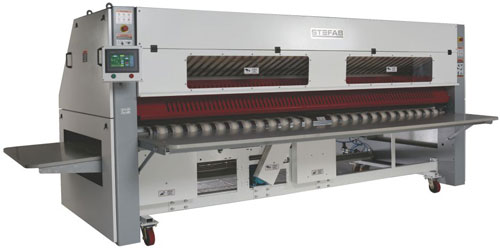

Automatic Bed Sheet Folder.

Model: FL 330

2 Primary Folds + 3 Cross Folds.
Single or Double Lane.

Intended Use:

Quick & automatic folding of all sizes of flat linen up-to 2 Lengths + 3 Cross Folds.

  • Upto 3300 x 3200mm.

  • Smart Touch Screen Computer

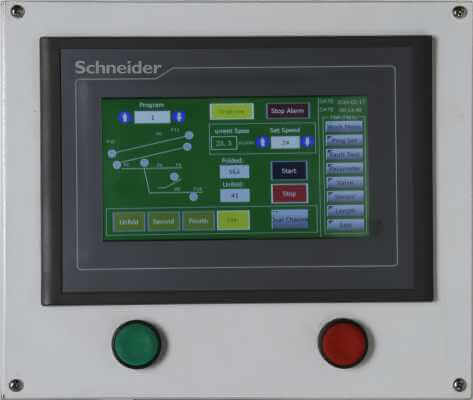

    Smart Touch Screen Computer

    Programmable Computer can be customized for any folding configuration. The preset programs can be easily modified or erased. LCD shows flow of all primary & cross folds. Integrated with Inverter Drives for precise speed synchronization with the Ironer. Easy to understand & operate.

  • Automatic Fold Size Selection
    Automatic Fold Size Selection

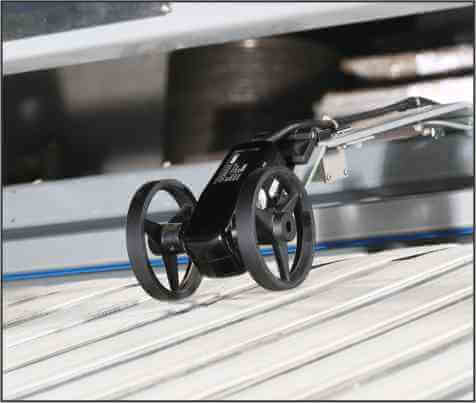

    Multi positioned photo sensors along the Feed Conveyor electronically measure length of the item for programmed number of primary & cross folds. Unique positions of photo sensors can correct any linen deviation & ring alarm to prevent jamming. Accurate folding for all sizes.


  • 2 Primary Folds+3 Cross Folds
    2 Primary Folds+3 Cross Folds

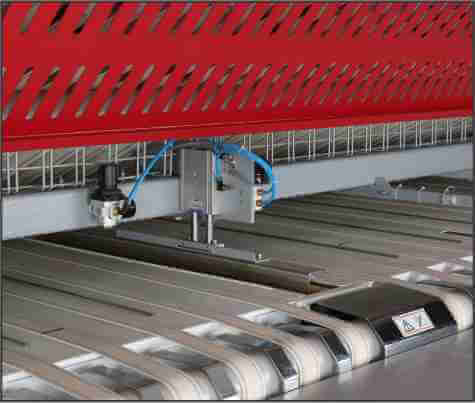

    1st Primary fold through full vertical drop. 2nd Primary fold by converging rollers. 1st Cross fold by a “Blade fold” directing the linen between rollers. 2nd Cross fold by an air jet & 3rd Cross by automatic “Lift fingers” through reverse conveyor mechanism. Neat folds at all times.

  • Perfect Speed Synchronization
    Perfect Speed Synchronization

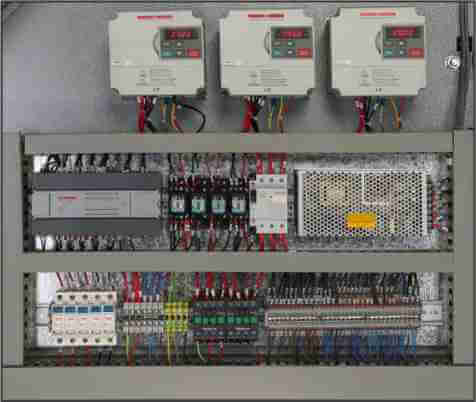

    Advance PLC working in conjunction with Variable Frequency Drives, Proximity Sensor & Pneumatics felicitate required number & types of folds. Automatic adjustment for all sizes of flat linen. Compatible with any Flatwork Ironer with perfect speed synchronization.
