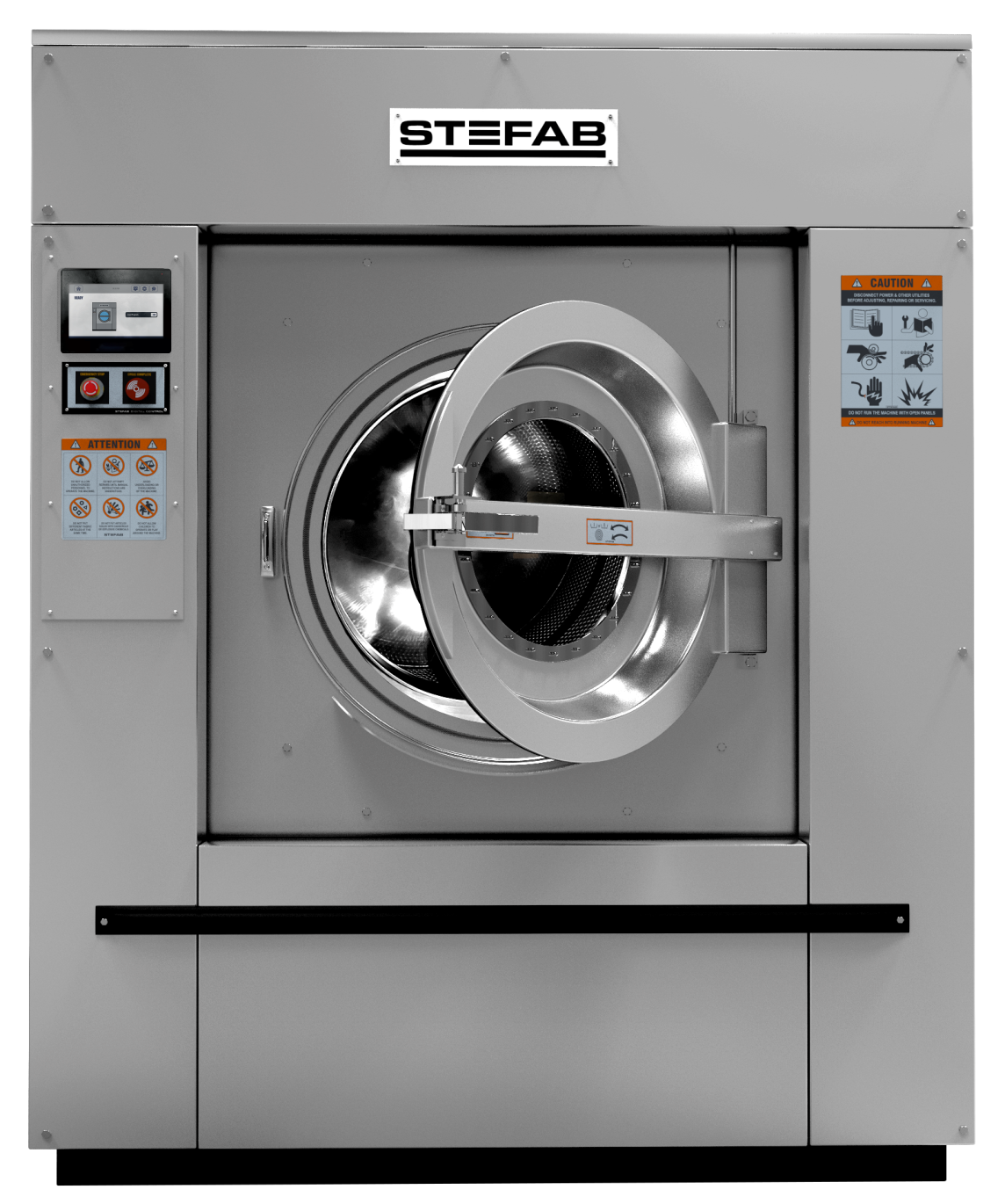

Washer Extractors. High Spin. Soft Mount.

'AX' RANGE

Front Loading. Stainless Steel Cabinet. Computer Controlled. Available in Electric, Steam & Thermic-Fluid.

Intended Use:

Washing (with inbuilt high speed extraction) of all types of linens, garments & textile made up articles.

30 KG Capacity, Model AX 30
60 KG Capacity, Model AX 60
120 KG Capacity, Model AX 120
120 KG Capacity (Forward Tilt), Model AX 120T

Micro Computer

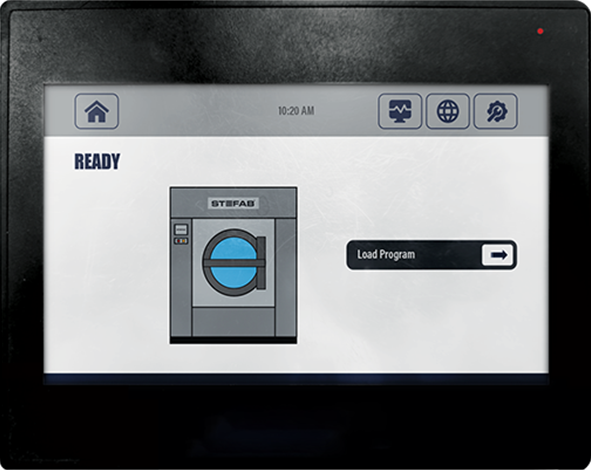

7'' Touch HMI - Stellar Series. Fully customizable with up to99 programs capturing all the features for any tailored process. Preset programs can also be modified. Automations to monitor water level, temperature, RPM & errors. loT Enabled. (Optional) Easy to operate.
Simple Efficient Inverter Drive

Single motor Inverter drive gets all the speeds required for washing, distribution, low, normal & high spin. No troublesome multispeed motors, clutches & brakes. The energy efficient drive reduces electric peak load demands.

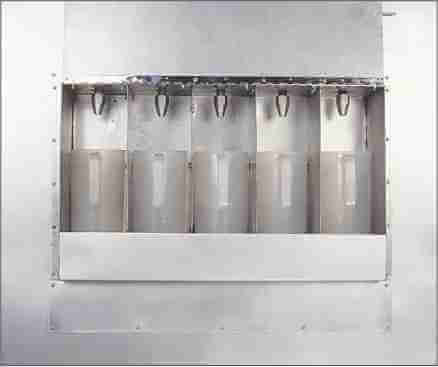

Five Compartment Dispenser

Five different chemicals can be placed in plastic containers in powder, liquid or gel form. Powerful jets completely flush out the chemicals as and when signaled by the computer. Optional : Liquid chemical supply connections for automatic Dozing Pumps.

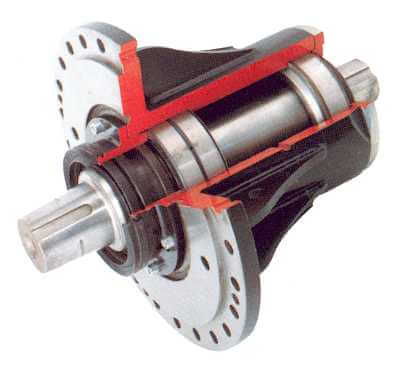

Bearing Housing, Triple Seal

The housing has wide roller bearings to have large contact area to disperse dynamic forces. Packed with lubricants & sealed. The self lubricating twin water seals & bearing seal are air separated. Prevents contact of water with the bearings.
