Product Range

Get the most
out of your investment.

Price is what you incur
initially & cost is what you will
spend over the life of the machine.
Stefab industrial machines
come with high-performance
technology to ensure the lowest
cost of operations.
High performance means
greater efficiency & premium
quality results.

Share this Product

Download
Technical
Brochure for this
product here.

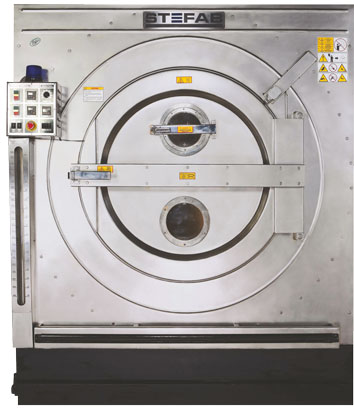

Apparel Processing Machines with Low Spin Extract.

'PL' RANGE

Front loading, open pocket. For enzyme/ stone washing, dyeing & speciality washes.

Intended Use:

Enzyme/ Stone washing, dyeing, speciality washes for all types of garments & textile made up articles.

120 KG Capacity, Model PL 120
240 KG Capacity, Model PL 240
360 KG Capacity, Model PL 360

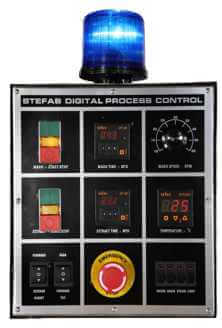

Digital Time & Temperature Control

A digital timer runs the process for the preset time & gives flash light signal at the end of each cycle. Another digital timer controls the low spin extract time. Auto digital temperature control. Individual controls for cylinder speed, water, steam & drain valve. Easy to operate.
Simple, Efficient Inverter Drive

Single motor inverter drive gets all precision speeds required for enzyme/stone washing, dyeing, turbo dyeing & other speciality washes. Low spin extract is affected by the same motor. The energy efficient drive reduces electric peak load demands.

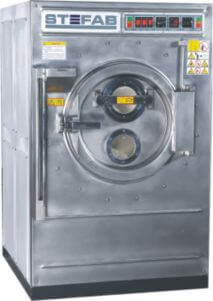

Sampling Machine with Normal Spin Extract

Front loading, open pocket. Single motor variable frequency drive. Precision speeds for special washes & turbo dyeing. Stainless steel front, outer drum & inner cylinder. Solenoid operated water & steam valves. Motorized drain valve. Auto timed & digital temperature control. Does not require separate Hydro Extractor.

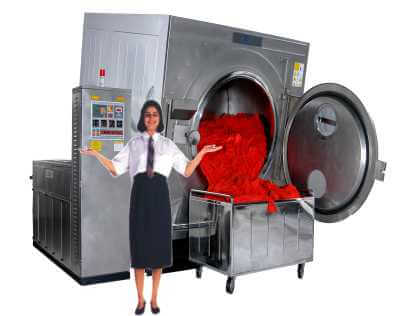

Self Unloading on 360 kg Machine

Hydraulic forward tilt on 360kg machine drops the entire load into a trolley in less than 30 seconds. Optional : 5 tank automatic dozing. One operator can handle up to 4 machines. Huge savings on time & labor.
