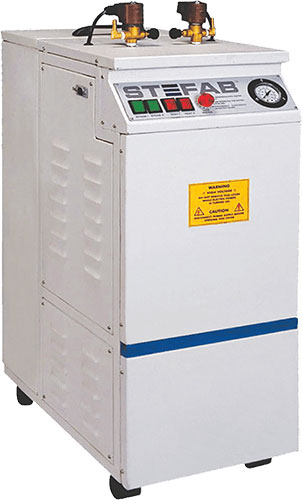

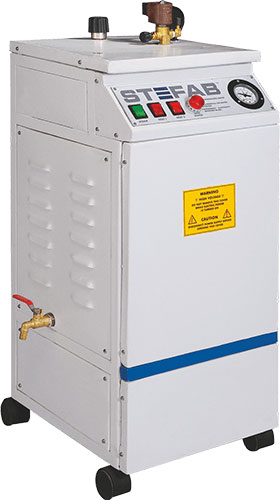

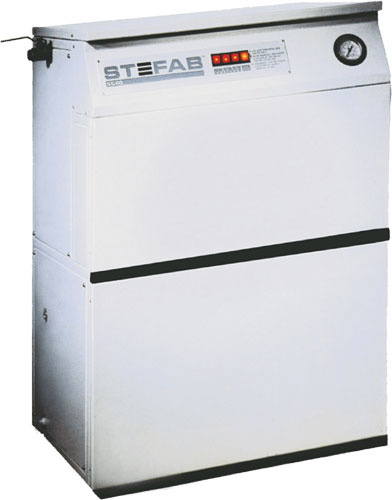

Steam Generators. Electric, Portable and Fully Automatic.

Model : SE 4, SE 8 & SE 40

Built in water storage tank. Motorized water feed pump. Automatic pressure & water level control.

Intended Use:

For steam supply of 4, 8 & 40kg/ hr as per three models stated above. Suitable for 1, 2 & 10 steam irons respectively.

Steam Capacity: 4kg/hr
Steam Capacity: 8kg/hr
Steam Capacity: 40kg/hr

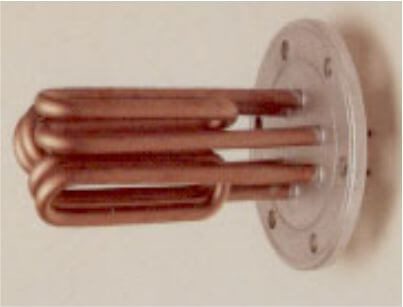

Stainless Steel Heating Element

S.S. 304 quality sheathing, porcelain insulation & thick flange to with stand high pressure in the carbon steel pressure vessel. Choice of 12,18 & 36 Kw with independent rocker switches mounted with the front control panel. Easy to dismantle & refit.

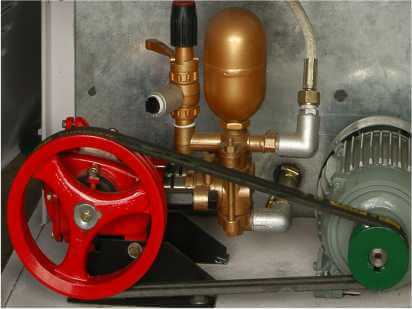

Motorized Piston Water Feed Pump

A belt driven, high pressure piston type pump automatically injects water into the pressure vessel as & when signaled by the water level regulator. The dual pistons with built it non return device eliminates any back pressure. Fail safe, positive water feed each time.

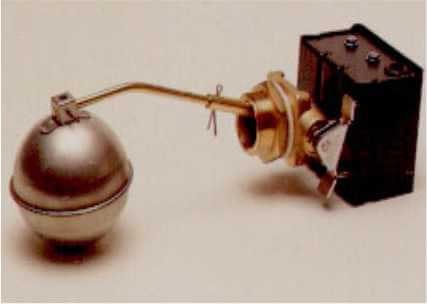

Float Type Water Level Controller

Stainless steel float ball working in conjunction with industrial type micro switches for low / high water level regulation prevents dry running of heating elements & at the same time prevents over filling of pressure vessel. Fail safe dry cut out. Easy to dismantle & refit.

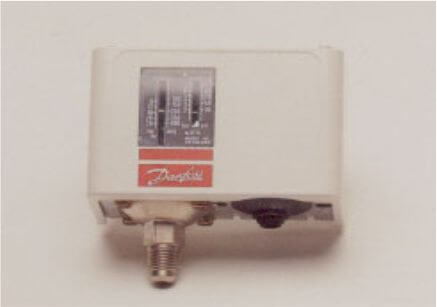

Pressure Control Switch

Pressure operated diaphragm type switch cuts power supply to heating elements when a preset higher pressure is achieved & similarly, resumes supply at a preset lower pressure. Accurate pressure differential to maintain steady steam supply. Fail safe, repeat operations.
